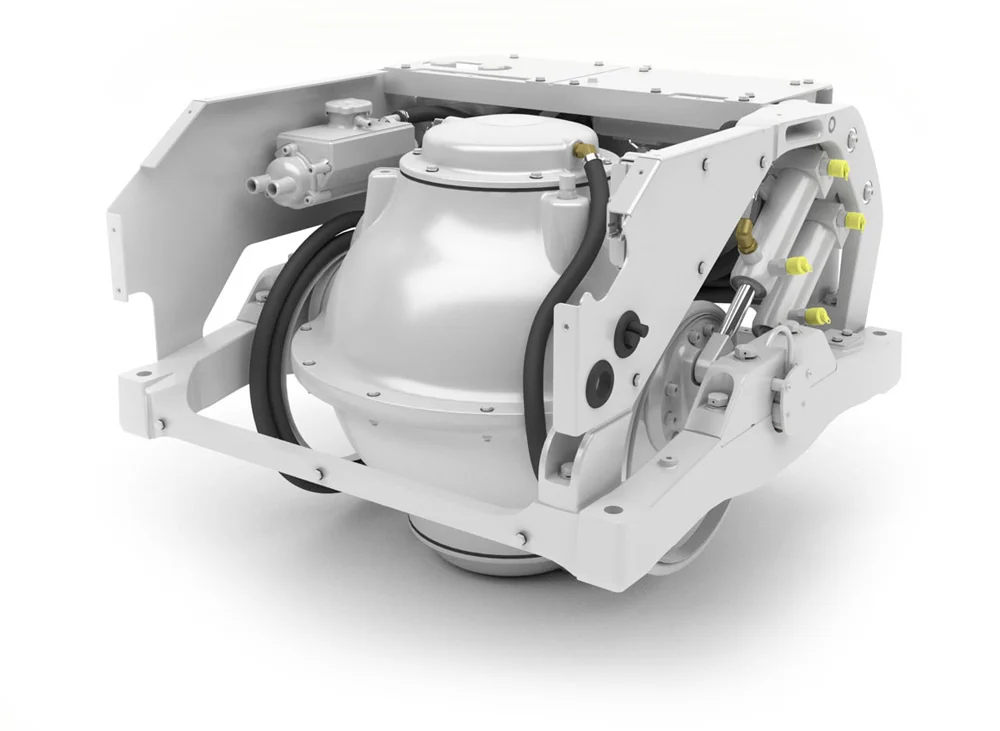

Seakeeper 3

Seakeeper 3

27,700.00

The Seakeeper 3 is specially designed to eliminate roll on ~30’ - 39’ boats. Refits have never been easier than with the Seakeeper 3’s leaning post installation option!

Innovative Cooling System

Our patented cooling system allows the flywheel to spin at an extremely high rate of speed, providing ultimate performance in the smallest and lightest package possible.

Vacuum Sealed

Seakeeper’s vacuum encapsulation enables the flywheel to spin roughly three times faster, cuts flywheel weight by two-thirds and halves power requirements. Moreover, because the critical components (flywheel, bearings, and motor) are sealed for life in a vacuum, they are forever isolated from the marine environment.

Active Control

Seakeeper’s active control optimizes gyro torque, providing an unsurpassed level of performance. Unlike a passively controlled gyro, which must be turned off in the roughest conditions and/or at higher speeds, the Seakeeper is effective at all speeds and can be used in all sea conditions.

Specifications

Rated Speed 8,450 RPM

Angular Momentum at Rated RPM 3,000 N-M-S

Max Anti-Rolling Torque at Rated RPM7,854 N-M

Spool-up Time to Rated RPM50 minutes (8,450 RPM)

Spool-up Time to Stabilization36 minutes (7,185 RPM)

DC Input Voltage12 VDC @ 85 Amps

Spool-up Power

DC900 Watts Max

Operating Power

DC400 - 750 Watts (Sea State Dependent)

Weight550 lbs (249 kg)

Envelope Dimensions26.8 L x 27.0 W x 22.5 H (inches)
0.681 L x 0.686 W x 0.572 H (meters)

Noise Output<72 dBC at 1 meter

Sea Water Supply to Heat Exchanger2 - 6 Gal/Min.

Ambient Air Temperature0 - 60 Deg. C (32 - 122 Deg. F)

PRICING DOES NOT INCLUDE INSTALLATION. PLEASE CONTACT US FOR INSTALLATION INFORMATION
